Miller HV274B4N Hydraulic Cylinder, 4" Bore, 1.25" Stroke, Includes Fittings
Hydraulic & Pneumatic Cylinders

Miller HV274B4N Hydraulic Cylinder, 4" Bore, 1.25" Stroke, Includes Fittings

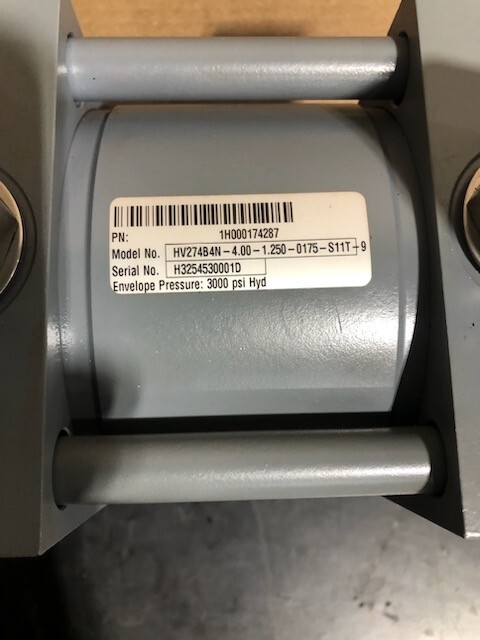

SKU: 355529651988Manufacturer: MillerModel: HV274B4N-4.00-1.250-0175-S11T-9
$199.00
3 available
ConditionUsed
Slightly Used Hydraulic Cylinders, removed from custom fixtures that never went to production. Great Shape
Quantity:
3 available
Subtotal$199.00

Description

Part Number Breakdown:
HV274B4N-4.00-1.250-0175-S11T-9

"HV2"-Series of Cylinder
"74"-Side Tap Mounts (Includes Mounting Bolts)
"B"-Bolted Bronze Bushings
"4"-Rod End Style
"N"-Non Cushioned
"4.00"-Bore Diameter
"1.250"-Stroke
"0175"-Rod Diameter (1.75mm)
"S"-SAE Port Type
"11"-Port Location (Head End & Cap End)
"T"-Standard Class 1 Seals
"9"-Modified
